Blue,24V,HYZHANHONG 12000W Renewable Energy Controller ,Wind Solar Hybrid Charge Controller with Dump Load, 12V/24V/48V/220V Automatic Controller for Home, Boat, Street Light

Product Description:Rated Wind Power: 12000WBattery：12V/24V/48V/220VMax input voltage:Wind turbine≤80Vsolar panel≤95VNo-load Current (DC):≤0.05AController power mode:Battery or solarControl mode:Wind generator MPPT boost charge、PWM dump load、PWM Over currentLimiting functionOutputworking mode(Mode):Mode 1: Light-control on. Light-control off (3modes adjustable)Display content:LCD display,Voltage,Percentage of battery power, Current, working mode of load,etcProtection type:Solar Reversed Charging protection，Battery open circuit protection、battery anti-reverse connection protection protection、Over current and over voltage auto brake protection、Over load protection,etc.Cooling mode:aluminium profiles Heat dissipation and self-coolingWorking temperature / Relative humidity:-25℃~+80℃ /0~90%，non-condensingController size: 167mm*145.5mm*61.8mmPack size:360mm*250mm*120mmNet weight / Gross weight:2.35/2.85kgProduct Content.1 x solar Controller

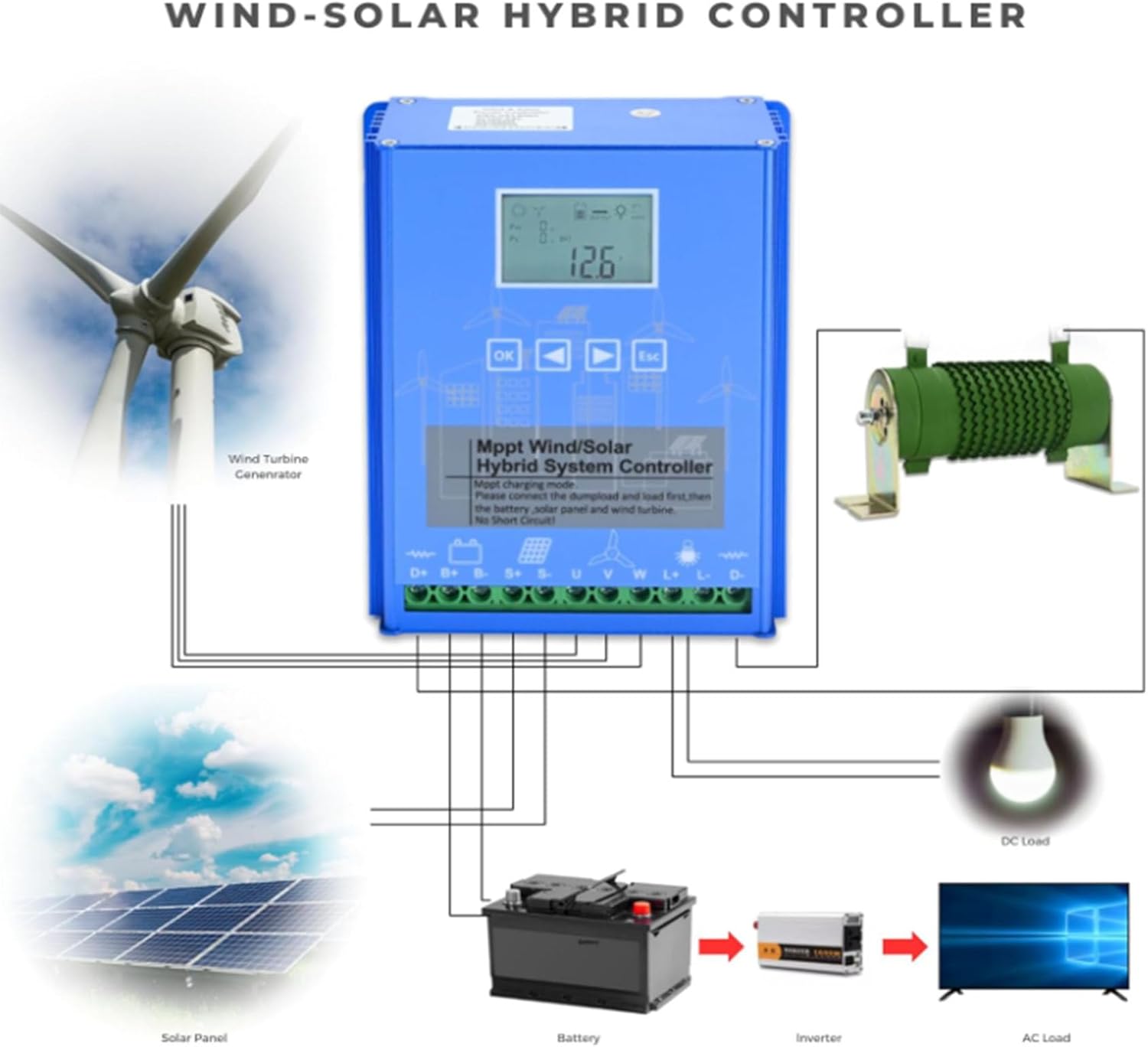

• ✔[Hybrid charge controller application range]: This hybrid charge controller fits all 12/24/48V batteries, including lithium battery. Fits 12000W max wind generator and 12000W max solar panels for wind solar complementary system for home, boat, street light.
• ✔[Operating System]: The solar charge controller charging part has booster MPPT technology, which makes it charge continuously and efficiently even at low wind speeds. Stepless discharge function including external dump charging resistor solar panel charging uses PWM technology through MOS tube in series.
• ✔[Intelligent and Stable System]: The parameter is set perfectly after the wind turbine charge controller choosing the battery type. User can also customize according to their own needs. This system has been updated more intelligently to control the charging voltage with absolute stability.
• ✔[Display and DC charging mode]: The wind and solar charge controller with larger LCD screen that is easy to browse and handle. Two DC load (output) with 4 output modes and each can be set different models.
• ✔[Protection Function]Reversed charging Protection of solar, over charge voltage/under voltage & Over load voltage Protection, battery reverse connects and open circuit protection, etc. modes. The controller provides a variety of output modes(light control, time control, morning light) feasible for various applications.
